¶ TANlock 3 Fingerprint
In this section we will cover how to configure TANlock 3 Fingerprint device and use it with CredoID.
TANlock 3 Fingerprint Firmware version used - 3.0.0
¶ Host communications
The TANlock 3 FP connects to the Host monitoring software/station over the network. This connection is what is used for system configuration and monitoring. If the connection to the Host is not available, events and other messages will be stored in the memory buffer on the TANlock 3 FP device and will be transmitted once a Host connection becomes available.
¶ Web Configuration Interface
TANlock 3 FP is equipped with a web configuration interface that allows setting various configuration options such as network, time, authentication module and firmware update.
In order to access the configuration pages, enter the IP address of the TANlock 3 FP into a web browser.
Default IP address for TANlock 3 FP : http://192.168.0.90
You have to configure your network adapter settings to be in the same subnet as TANlock 3 FP device before accesing its configuration page.
The webpage will prompt for a user and password when trying to navigate. The default credentials are case-sensitive.
- Name: tanlock
- Password: TANlock
Configuration options can be accessed by hovering mouse over the "Settings" menu at the top of the screen and then clicking required option.
¶ Network configuration
This section is for configuring device network settings.

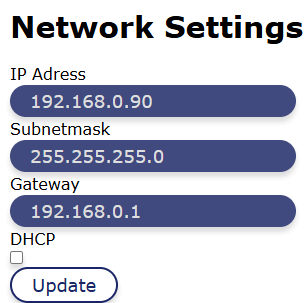

To configure device network parameters go to "Settings" -> "Network".
If DHCP is enabled, the interface will obtain an IP address from a DHCP server on the network. If there is no DHCP server available or manual IP configuration will be used - don't enable DHCP.
Device has to be rebooted to apply changes.
¶ TANlock Authentication Module
Navigate to TANlocks' Web Configuration interface.

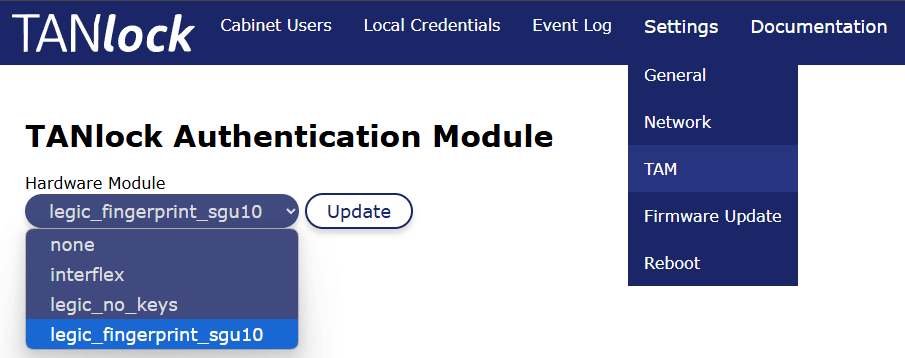

Go to "Settings -> TAM -> Hardware Module -> legic_fingerprint_sgu10"
Click "Update" and restart TANlock.
legic_fingerprint_sgu10 has to be selected as hardware module for fingerprint TANlock.
¶ TANlock 3 FP with CredoID
This section explains how to connect TANlock 3 Fingerprint device with CredoID.
¶ Adding device to CredoID
Currently TANlock 3 device can only be added to CredoID manually.
- Navigate to "Hardware" -> "Devices" page.

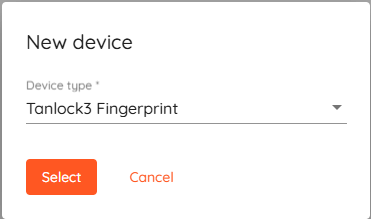

- Click "Add" button and select TANlock 3 Fingerprint device.

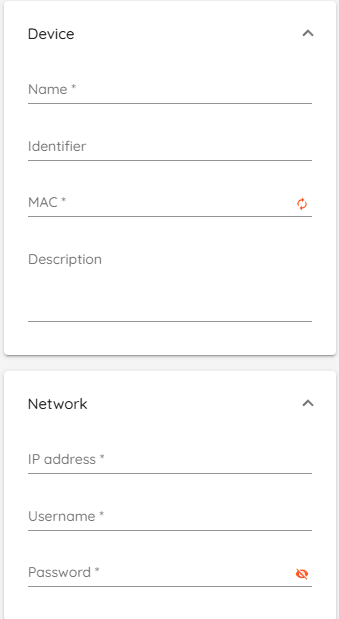

- Fill in details for your device.
- Device Name: Type unique name for device.
- Identifier: Device identifier, generated by CredoID
- MAC: Device MAC address.
- IP Address: IP address for of the device.
- Username and Password: Same as TANlock 3 FP configuration page credentials.
- Click "Save" button. After saving - device should come online in a few moments.
Employee number is limited to 9 digits, if any of the users in database has longer employee number - TANlock 3 FP device might get sync error.
Information on how to add a fingerprint can be found here.
